Chapter 1 - Robotics Hardware Fundamentals
What is a Power Management System?
A Power Management System (PMS) in a robot is responsible for supplying, distributing, regulating, and optimizing power to all components, including sensors, actuators, control units, and communication modules.
It ensures that the robot operates efficiently, safely, and reliably by preventing power failures, overheating, and energy waste.
How does it work?
1. Key Functions of a Power Management System
1.1. Power Generation & Storage – Provides energy through batteries, fuel cells, wired power or internal combustion engines.
1.2. Power Distribution – Supplies the correct voltage and current to different subsystems.
1.3. Power Conversion & Regulation – Converts power (e.g., AC to DC, high to low voltage).
1.4. Power Monitoring & Optimization – Manages energy consumption and battery life.
1.5. Safety & Protection – Includes circuit breakers, fuses, and thermal management.
2. Components of a Power Management System
2.1 Power Sources (Energy Supply)
• Batteries (Most Common)
• Lithium-ion (Li-ion) – High energy density, rechargeable (e.g., drones, humanoid robots).
• Lithium-polymer (Li-Po) – Lightweight, used in agile robots.
• Lead-Acid – Heavy-duty, used in industrial robots.
• Nickel-Metal Hydride (NiMH) – Used in older robots. They’re still popular in hobby robots.
• Fuel Cells
• Hydrogen Fuel Cells – Used in advanced robots for long-duration missions (e.g., Mars Rovers).
• Methanol Fuel Cells – Alternative to lithium batteries.
• Supercapacitors
• Store and release power quickly, used for energy bursts (e.g., robotic arms, drones).
• Solar Panels
• Used for renewable energy robots (e.g., outdoor autonomous systems, space robots).
• Wired Power Supply
• Used in stationary robots (e.g., industrial robotic arms, factory automation).
2.2 Power Distribution System
• Power Bus – Routes power to different components.
• Voltage Regulators – Ensure each component receives the required voltage.
• Power Distribution Board (PDB) – Used in drones and robotic platforms.
2.3 Power Conversion & Regulation
• DC-DC Converters – Step up or step down voltage for different subsystems.
• AC-DC Converters – Convert wall power (AC) to usable DC power.
• Battery Management System (BMS) – Monitors battery health, charging, and discharging.
2.4 Power Monitoring & Energy Efficiency
• Smart Power Management Chips – Optimize energy usage.
• Energy Harvesting Systems – Capture and reuse energy (e.g., regenerative braking in mobile robots).
• Sleep & Low-Power Modes – Reduce energy consumption when the robot is idle.
2.5 Safety & Protection Mechanisms
• Circuit Breakers & Fuses – Protect against electrical overloads.
• Thermal Management (Cooling Fans, Heat Sinks) – Prevent overheating.
• Overvoltage & Undervoltage Protection – Ensures stable power delivery.
3. Power Management in Different Robots
3.1. Mobile Robots (Drones, AGVs, Humanoids)
• Battery-based with smart charging.
• Regenerative braking to save energy.
3.2. Industrial Robots (Manufacturing, Logistics)
• Wired power supply with backup batteries.
• High-power AC-DC conversion.
3.3. Space & Underwater Robots
• Solar-powered or Radioisotope Thermal-electric Generated (RTG).
• Advanced battery management for extreme conditions.
3.4. Medical Robots
• Reliable power backup (UPS).
• Safety-critical power monitoring.
4. Challenges & Future Trends
4.1. Longer Battery Life – Newer battery technologies (e.g., solid-state batteries).
4.2. Wireless Charging – Inductive charging for mobile robots.
4.3. AI-Based Power Optimization – Machine learning to predict and optimize power usage.
4.4. Renewable Energy Integration – Solar-powered and self-sustaining robots.

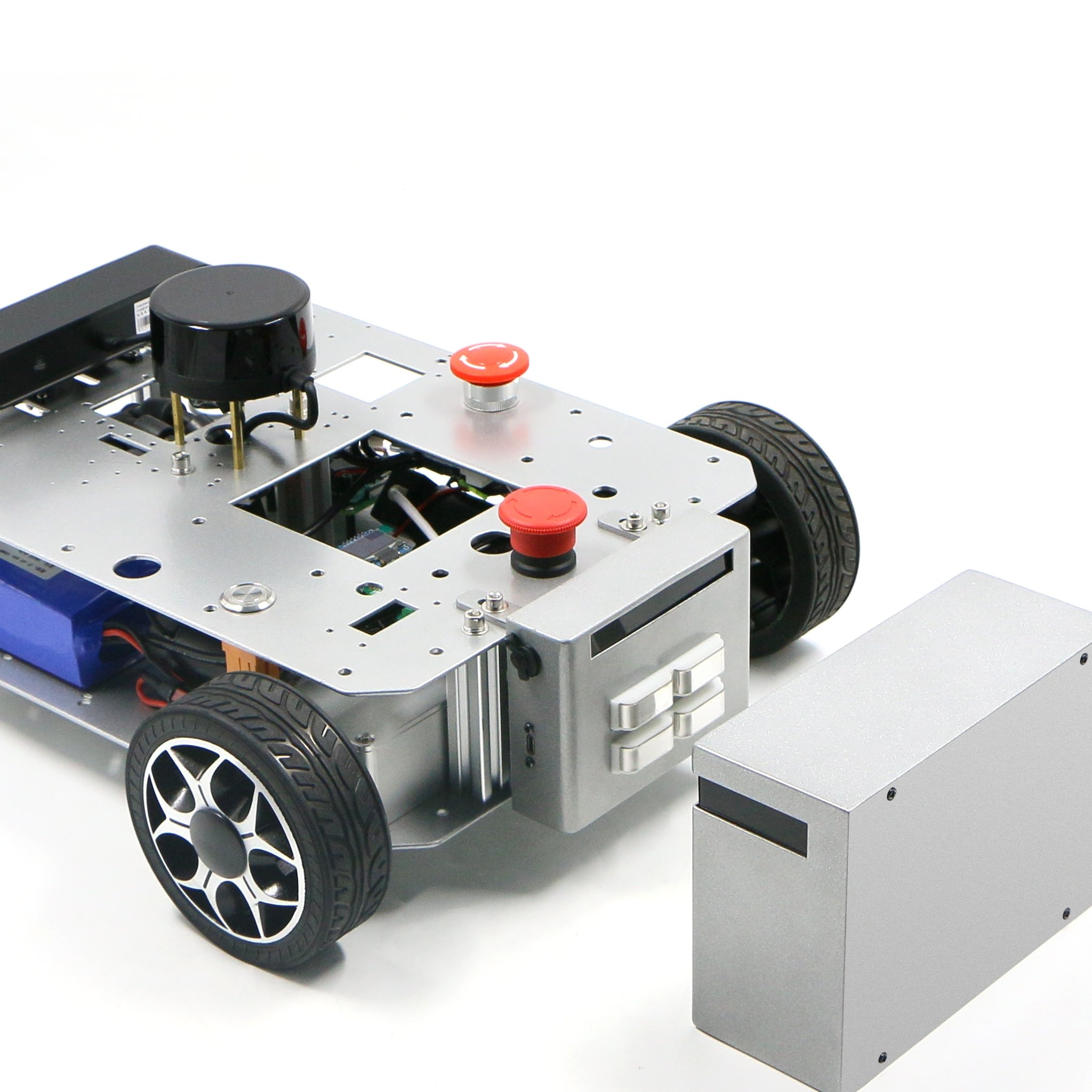

Auto Charging Stations
How an Auto Charging Station Works as Part of the Power Management System?
An auto charging station integrates into the Power Management System by handling:
1. Power Supply – Provides energy to recharge the robot’s batteries.
2. Battery Monitoring & Management – Ensures optimal charging to extend battery life.
3. Navigation & Docking System – Uses sensors (e.g., LiDAR, infrared, cameras) for precise alignment.
4. Wireless or Contact Charging – Transfers energy efficiently without requiring cables.
5. Smart Energy Optimization – Prevents overcharging, overheating, and power loss.
Types of Auto Charging Stations
1. Docking Station (Contact-Based Charging)
• Robots physically connect to a charging pad or metal contacts.
• Used in robotic vacuum cleaners, AGVs, and warehouse robots.
2. Wireless (Inductive) Charging
• Uses electromagnetic induction to transfer power wirelessly.
• Reduces wear and tear from physical connectors.
• Used in advanced warehouse robots and electric vehicles.
3. Solar-Based Charging Stations
• Autonomous outdoor robots (e.g., agricultural drones, solar-powered rovers) use solar panels.
• Reduces dependency on wired power sources.
4. Battery Swap Stations
• Some industrial robots swap depleted batteries for fully charged ones.
• Reduces downtime compared to traditional charging.
Benefits of an Auto Charging Station in a Power Management System
1. Uninterrupted Operations – Robots can self-recharge without human intervention.
2. Optimized Battery Life – Intelligent charging algorithms prevent overcharging and extend battery lifespan.
3. Reduced Human Effort – No manual plugging or unplugging needed.
4. Smart Power Distribution – Some systems manage multiple robots charging simultaneously, balancing energy loads.
Use Cases of Auto Charging in Different Robots
• AGVs & AMRs (Automated Guided Vehicles, Autonomous Mobile Robots) – Used in warehouses for 24/7 logistics.
• Self-driving Cars – Electric vehicle charging stations designed for autonomous vehicles.
• Service Robots (Vacuum Cleaners, Delivery Bots) – Automatically return to docking stations when low on power.
• Drones (UAVs) – Wireless drone charging pads enable extended flight operations.
• Industrial & Factory Robots – Continuous operation with minimal downtime.
• Outdoor & Agricultural Robots – Solar-powered auto charging stations for fieldwork.
